draw level indicator. - command description

•
  cota (commandline entry)
•
  APLUS>ARCHITECTURAL>cota (menu)

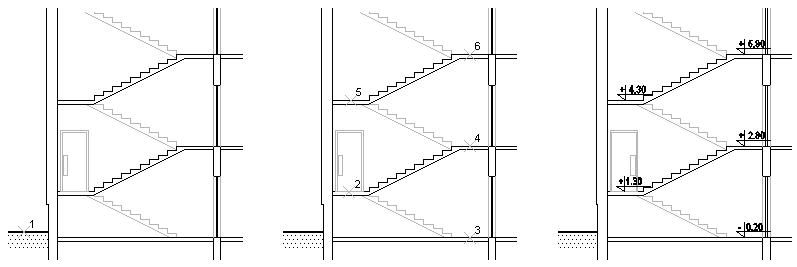

To draw level indicator:
1. Specify localization of 0,00 level (space repeats last)
2. Specify point on height you want to measure



To move or copy level indicator use commands cotam and cotac . By using AutoCAD's _MOVE or _COPY commands you unable APLUS to update automatic update of measured values.

By default, heights are displayed in centimetres with 2-digit after decimal separator. You can change this setting with command cotap . You can also set default layer for inserted level indicators.

If you change height of 0,00 use command cotau , to update all level indicators.
